Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains

Name: Maximum 32mm G80 Lifting Chain Polishing And Black Blackened Lifting Chains
Brand: JCYC/OEM
Price: 1 USD

China Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains wholesale

Brand Name : JCYC/OEM

Model Number : EN818-2 Blackened Lifting Chain

Certification : CE ISO9001 Manufacturing licence

Place of Origin : China

MOQ : 500 meters

Price : negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 80000 meters per month

Delivery Time : 30 working day

Packaging Details : Metal bucket

∮ (Min.) : 6±0.24

∮(Max.) : 32±1.6

L(Min.) : 18±0.5

L(Max.) : 96±2.9

b1(mm) : 41.6

Contact Now

Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains

1. Product Profile:

EN818-2 BLACKENED LIFTING CHAIN

Blackened lifting chain, EN818-2 Model, 6mm-22mm with self-color, polishing and black blackened

2. Parameter:

Item		WLL(t)	B.L(t)	∮(mm)	L(mm)	b1(mm)Min.	b2(mm)Max.
SY-C1001-6	6mm	1.12	4.48	6±0.24	18±0.5	7.8	22.2
SY-C1001-7	7mm	1.5	6	7±0.28	21±0.6	9.1	25.9
SY-C1001-8	8mm	2	8	8±0.32	24±0.7	10.4	29.6
SY-C1001-10	10mm	3.15	12.6	10±0.4	30±0.9	13	37
SY-C1001-13	13mm	5.3	21.2	13±0.52	39±1.2	16.9	48.1
SY-C1001-16	16mm	8	32	16±0.64	48±1.4	20.8	59.2
SY-C1001-18	18mm	10	40	18±0.9	54±1.6	23.4	66.6
SY-C1001-20	20mm	12.5	50	20±0.1	60±1.8	26	74
SY-C1001-22	22mm	15	60	22±1.1	66±2	28.6	81.4
SY-C1001-26	26mm	21.2	84.8	26±1.3	78±2.3	33.8	96.2
SY-C1001-32	32mm	31.5	126	32±1.6	96±2.9	41.6	118

3. Features and Advantages:

1. High strength alloy steel

2. Proof tested at 2.5 times of the working load limit

3. Ultimate load at 4 times of the working load limit
4. Painted, plastic coating, hot-dip galvanized and electric galvanized, etc
5. JCYC brand or special customized marking

6. High quality and wide adaptation.

7. Excellent performance.

8. 1 year warranty

4. Photo:

Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains

5. Company Message:

OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.

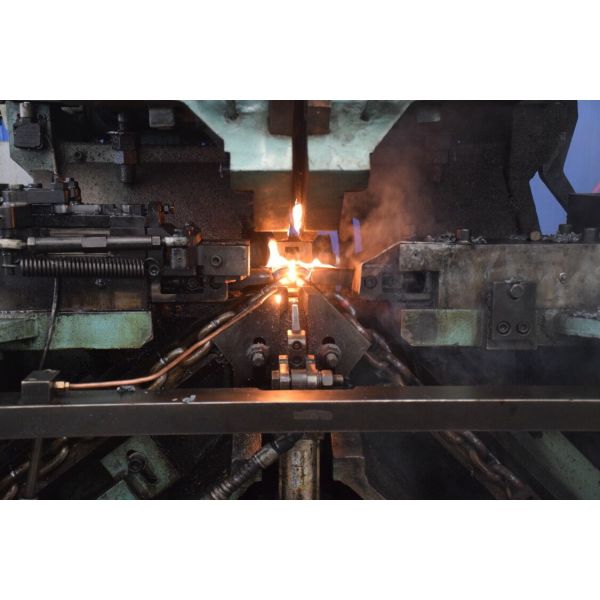

6. Factory show:
